Convoluted Stainless Steel Hose

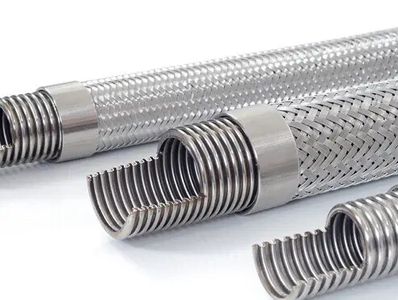

Stainless Steel convoluted hose with an annular profile.
Convoluted Stainless Steel Hose is especially designed to achieve several objectives in pipework design. These include, absorption or vibration, operate under vacuum, handle temperature extremes, suppress rigid pipe noise transmitted, accommodate reciprocating and flexing movement, operate effectively under high pressures and adjust or correct for misalignment. VITALFLEX® hose is a general purpose industrial hose and is available in different grades of stainless steel including 304, 316, 321, Monel & Inconel.
Industry
CHEMICAL
DEFENCE FORCE
FOOD & BEVERAGE
GENERAL PURPOSE INDUSTRIAL
HVAC
INDUSTRIAL AND POWER
OFFSHORE
OIL & GAS
ONSHORE
PETROLEUM
PHARMACEUTICAL
SPACE
TRANSPORTATION
WATER TREATMENT
Temperature Range : -276°C +700°C
Our food and beverage hoses are FDA-approved and made with non-toxic materials to ensure safety and cleanliness. We offer hoses for various applications such as dairy, beverage, and food processing.

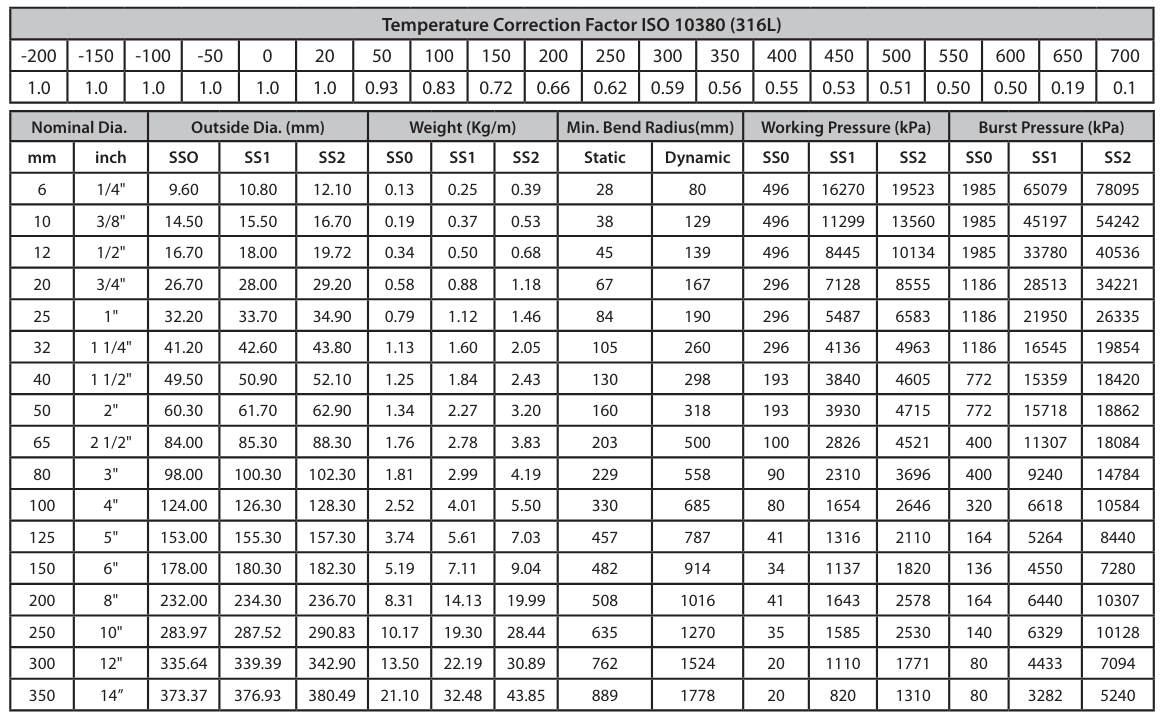

Tolerances - ISO 10380
The nominal length refers to the hose complete with end fittings and indicates the total length. Unless otherwise arranged when ordering, the following length tolerances must be taken into account when checking the nominal length:
The ‘‘End to End’’ or ‘‘Seat to Seat’’ length of a hose assembly shall be the length as ordered to a tolerance of +3% / -1 - Smaller length tolerances are possible, but must be specially agreed when ordering.
Standards & Certification
Applicable Standards
Corrugated Metal Hoses: ISO 10380:2012
AGA Approved: AS 4631:2005 (upon request)
Watermark Approved – WMTS 520:2016 (upon request)
Welding Compliant to: AS 4041- Class 1 (upon request)
Seismic Rated: AS 1170 (upon request)
Fire Protection Systems (upon request)
